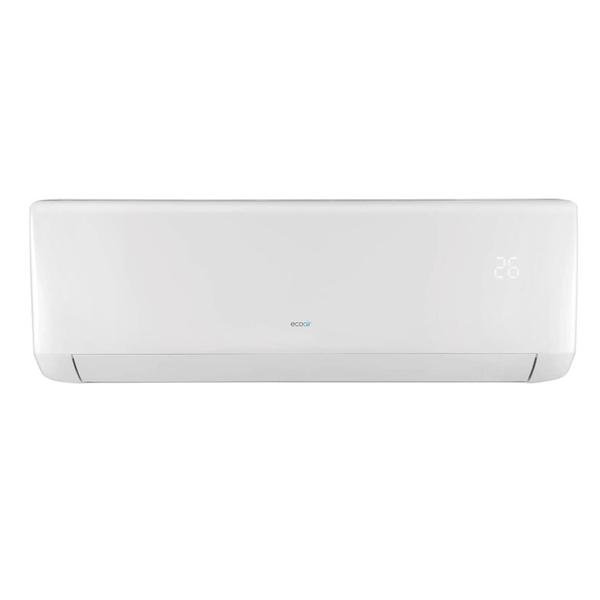

Inverter Air Conditioning 9000BTU WiFi X Series (920SD) - INDOOR Unit Only
- Wi-Fi Connectivity
- Low GWP R32 Refrigerant
- SEER up to 6.1
- Intelligent Defrosting
- G10 Energy Saving Inverter Technology
- Ultra Quiet Operation
- 24 Hour Timer
- Settings Memory
- Sleep Mode
- Auto Restart
- CE Marking To UK & EU
Introducing the X Series Inverter WiFi wall mounted series. The next evolution of these exciting Split Inverter units provide heating and cooling flexibility where you need it most.

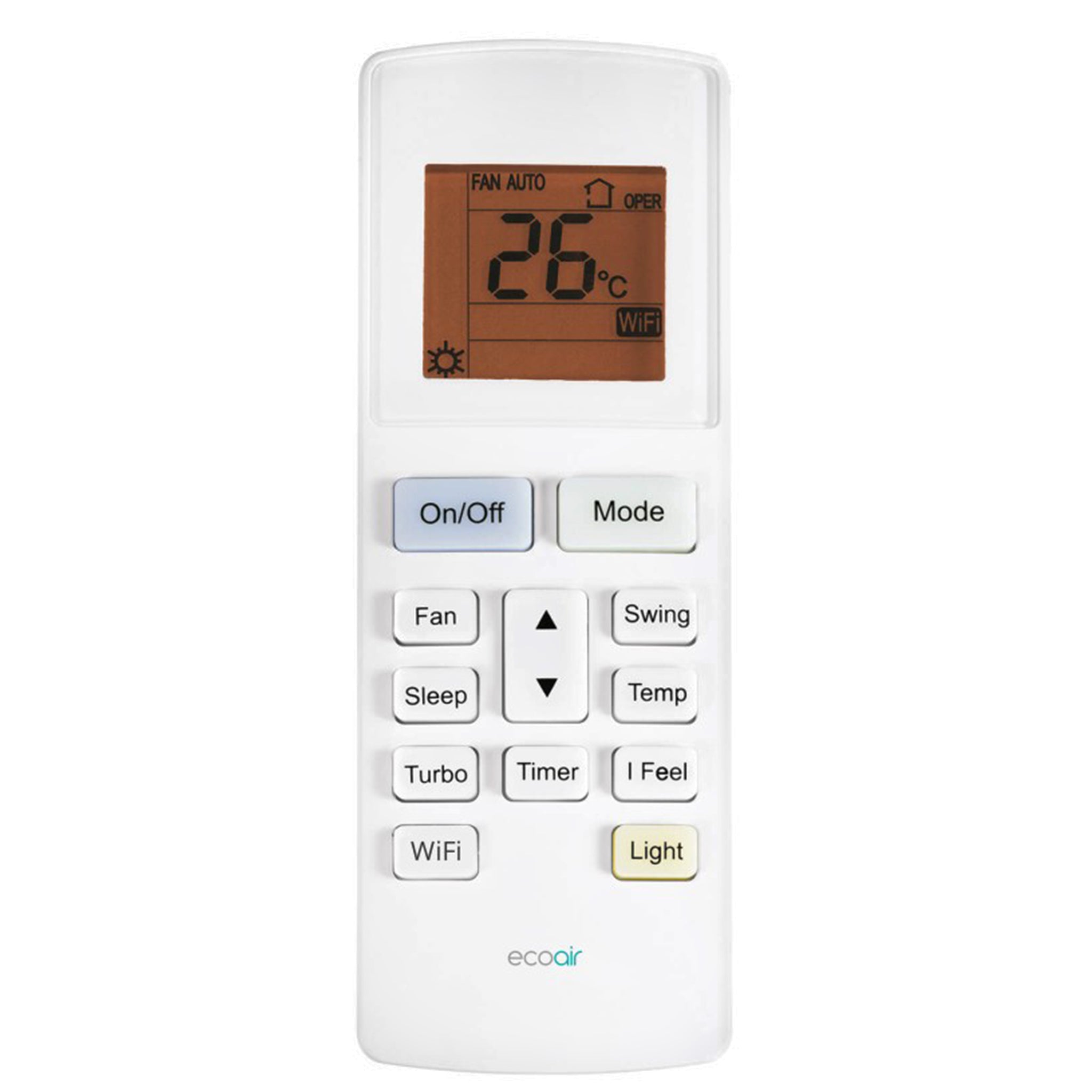

An impressive A+++ and A++ energy rating coupled with a stylish design and a plethora of remote controlled functions for precise temperature control.
Presented to you with four outstanding specifications, dependent on your needs. Manage your environment and improve the air that you breathe.
This inverter air conditioning can save you 30-50% on energy bill over the non inverter equivalent. This air conditioning unit is ideal for most living rooms within the home and office. This is a 12000Btu air conditioning (3.52kW) capacity on Cooling and heating capacity for the winter months.
Currently, EcoAir is doing its part to address the global warming issue to select the refrigerant of choice, the R32, a mildly flammable refrigerant difluoromethane in our new range of domestic air-conditioners.
The X Series Inverter WiFi wall mounted Split Air Conditioning series uses a low GWP refrigerant (R32) that was introduced as part of the EU's commitment to reducing CO2 levels.
|Power supply||Ph-V-Hz||1, 220-240V~, 50Hz||1, 220-240V~, 50Hz||1, 220-240V~, 50Hz||1, 220-240V~, 50Hz|
|Cooling||Capacity||kW||2.5 (0.5~3.35)||3.2 (0.6~3.6)||4.6 (0.65~5.2)||6.16 (1.8~6.4)|
|Capacity||Btu||9000 (1700~11500)||12000 (2047~12283)||18000 (2218~17742)||24000 (6142~21837)|
|Input Power||kW||0.78 (0.16~1.4)||0.997 (0.1~1.4)||1.43 (0.15~1.7)||1.76 (0.6~2.5)|
|Heating||Capacity||kW||2.8 (0.5~3.5)||3.4 (0.6~4.4)||5.2 (0.7~5.4)||6.45 (1.6~6.6)|
|Capacity||Btu||9000 (1700~12000)||12000 (2047~15013)||18000 (2388~18425)||24000 (5459~22519)|
|Input Power||kW||0.777 (0.2~1.5)||0.94 (0.12~1.5)||1.4 (0.16~1.6)||1.86 (0.65~2.60)|
|Indoor Sound Pressure Level||dB(A)||28/35/37/40||28/35/37/42||34/39/45/48||34/40/44/48|
|Indoor Sound Power Level||dB(A)||40/47/49/55||40/47/49/55||44/49/55/58||44/50/54/59|
|Indoor unit||Net Dimension (WxHxD)||mm||773×250×185||773×250×185||970×300×225||970×300×225|
|Outdoor Sound Pressure Level||dB(A)||52||52||54||57|
|Outdoor Sound Power Level||dB(A)||60||62||63||67|
|Outdoor unit||Net Dimension(WxHxD)||mm||776×540×320||842×596×320||899×596×378||955×700×396|
|Refrigerant type R32||g||600||650||770||1300|
|Refrigerant piping||Liquid side/ Gas side||mm(inch)||6.00(1/4)/9.52(3/8)||6.00(1/4)/9.52(3/8)||6.00(1/4)/9.52(3/8)||6.00(1/4)/16.00(5/8)|
|Max. refrigerant pipe length||m||15||20||20||25|
|Energy Rating (Cooling / Heating)||A++/A+++||A++/A+++||A++/A+++||A++/A+++|
|Operational Temperature||°C||16 ~ 30||16 ~ 30||16 ~ 30||16 ~ 30|
|Ambient Temperature (Heating)||°C||-5 ~ 24||-5 ~ 24||-5 ~ 24||-5 ~ 24|
|Ambient Temperature (Cooling)||°C||18 ~ 43||18 ~ 43||18 ~ 43||18 ~ 43|
|Note: Due to our policy of innovation some specifications may be changed without notification.|
|All split air conditioning units contain F-gas and is governed by F-gas regulations under EU regulations: The installation of all split air conditioning units containing F-gas (R407C, R410A & R32) require installation or commissioning by a F-gas certified air conditioning engineer. It is illegal to handle gas without the required F-gas qualification. Therefore, any installation by non-qualified F-gas engineer will render your warranty void.|
