2420SD Inverter Air Conditioning 24000BTU WiFi X Series
by EcoAir
Sold out
Original price
£896.94
-
Original price
£896.94
Original price
£896.94
£896.94
£896.94
-
£896.94
Current price
£896.94
Features:
- Wi-Fi Connectivity
- Low GWP R32 Refrigerant
- SEER up to 6.1
- Intelligent Defrosting
- G10 Energy Saving Inverter Technology
- Ultra Quiet Operation
- 24 Hour Timer
- Settings Memory
- Sleep Mode
- Auto Restart
- CE Marking To UK & EU
| Technical Specification | 920SD | 1220SD | 1820SD | 2420SD | ||
| Power supply | Ph-V-Hz | 1, 220-240V~, 50Hz | 1, 220-240V~, 50Hz | 1, 220-240V~, 50Hz | 1, 220-240V~, 50Hz | |
| Fed to | Outdoor | Outdoor | Outdoor | Outdoor | ||
| Cooling | Capacity | kW | 2.5 (0.5~3.35) | 3.2 (0.6~3.6) | 4.6 (0.65~5.2) | 6.16 (1.8~6.4) |
| Capacity | Btu | 9000 (1700~11500) | 12000 (2047~12283) | 18000 (2218~17742) | 24000 (6142~21837) | |
| Input Power | kW | 0.78 (0.16~1.4) | 0.997 (0.1~1.4) | 1.43 (0.15~1.7) | 1.76 (0.6~2.5) | |
| SEER | Btu, w/w | 6.1 | 6.1 | 6.1 | 6.1 | |
| Current | A | 3.99 | 4.5 | 6.3 | 7.7 | |
| Heating | Capacity | kW | 2.8 (0.5~3.5) | 3.4 (0.6~4.4) | 5.2 (0.7~5.4) | 6.45 (1.6~6.6) |
| Capacity | Btu | 9000 (1700~12000) | 12000 (2047~15013) | 18000 (2388~18425) | 24000 (5459~22519) | |
| Input Power | kW | 0.777 (0.2~1.5) | 0.94 (0.12~1.5) | 1.4 (0.16~1.6) | 1.86 (0.65~2.60) | |
| SCOP | W/W | 4 | 4 | 4 | 4 | |
| Current | A | 3.74 | 4.4 | 6.2 | 8.1 | |
| Rated Input | kW | 1.5 | 1.5 | 1.7 | 2.6 | |
| Rated Current | A | 6.3 | 7.2 | 8 | 10.9 | |
| Indoor Sound Pressure Level | dB(A) | 28/35/37/40 | 28/35/37/42 | 34/39/45/48 | 34/40/44/48 | |
| Indoor Sound Power Level | dB(A) | 40/47/49/55 | 40/47/49/55 | 44/49/55/58 | 44/50/54/59 | |
| Indoor unit | Net Dimension (WxHxD) | mm | 773×250×185 | 773×250×185 | 970×300×225 | 970×300×225 |
| Net/Gross weight | Kg | 8.5/9.5 | 8.5/9.5 | 13.5/16.5 | 13.5/16.5 | |
| Outdoor Sound Pressure Level | dB(A) | 52 | 52 | 54 | 57 | |
| Outdoor Sound Power Level | dB(A) | 60 | 62 | 63 | 67 | |
| Outdoor unit | Net Dimension(WxHxD) | mm | 776×540×320 | 842×596×320 | 899×596×378 | 955×700×396 |
| Net/Gross weight | Kg | 29/31.5 | 31/34 | 34/37 | 46/50.5 | |
| Refrigerant type R32 | g | 600 | 650 | 770 | 1300 | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | 6.00(1/4)/9.52(3/8) | 6.00(1/4)/9.52(3/8) | 6.00(1/4)/9.52(3/8) | 6.00(1/4)/16.00(5/8) |
| Max. refrigerant pipe length | m | 15 | 20 | 20 | 25 | |
| Max. Elevation | m | 10 | 10 | 10 | 10 | |
| Dehumidification | litres/h | 0.8 | 1.4 | 1.8 | 1.8 | |
| Energy Rating (Cooling / Heating) | A++/A+++ | A++/A+++ | A++/A+++ | A++/A+++ | ||
| Operational Temperature | °C | 16 ~ 30 | 16 ~ 30 | 16 ~ 30 | 16 ~ 30 | |
| Ambient Temperature (Heating) | °C | -5 ~ 24 | -5 ~ 24 | -5 ~ 24 | -5 ~ 24 | |
| Ambient Temperature (Cooling) | °C | 18 ~ 43 | 18 ~ 43 | 18 ~ 43 | 18 ~ 43 | |
| Note: Due to our policy of innovation some specifications may be changed without notification. | ||||||
| All split air conditioning units contain F-gas and is governed by F-gas regulations under EU regulations: The installation of all split air conditioning units containing F-gas (R407C, R410A & R32) require installation or commissioning by a F-gas certified air conditioning engineer. It is illegal to handle gas without the required F-gas qualification. Therefore, any installation by non-qualified F-gas engineer will render your warranty void. | ||||||
Items you will get:
- 1 x X-Series Indoor Unit

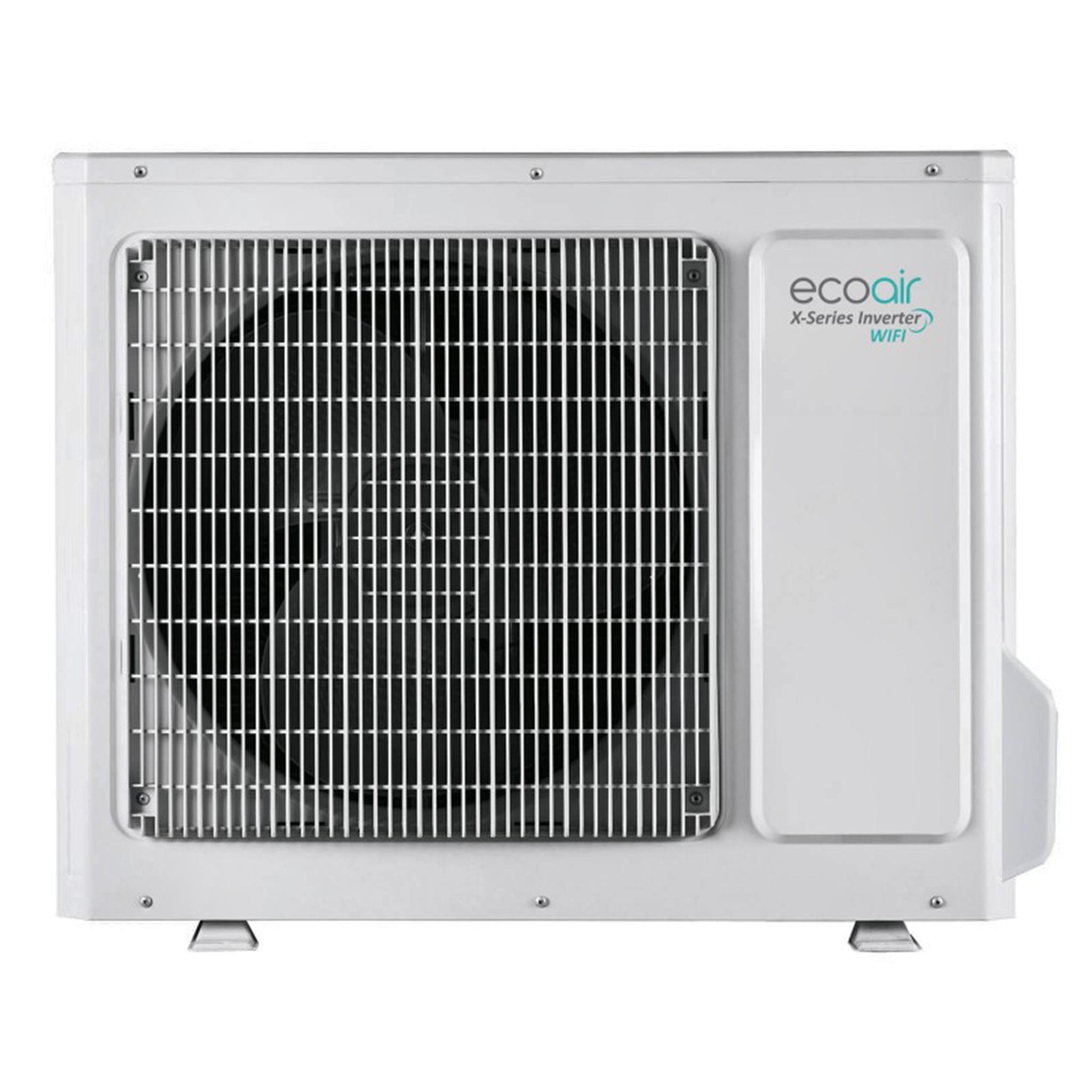

- 1 x X-Series Outdoor Unit

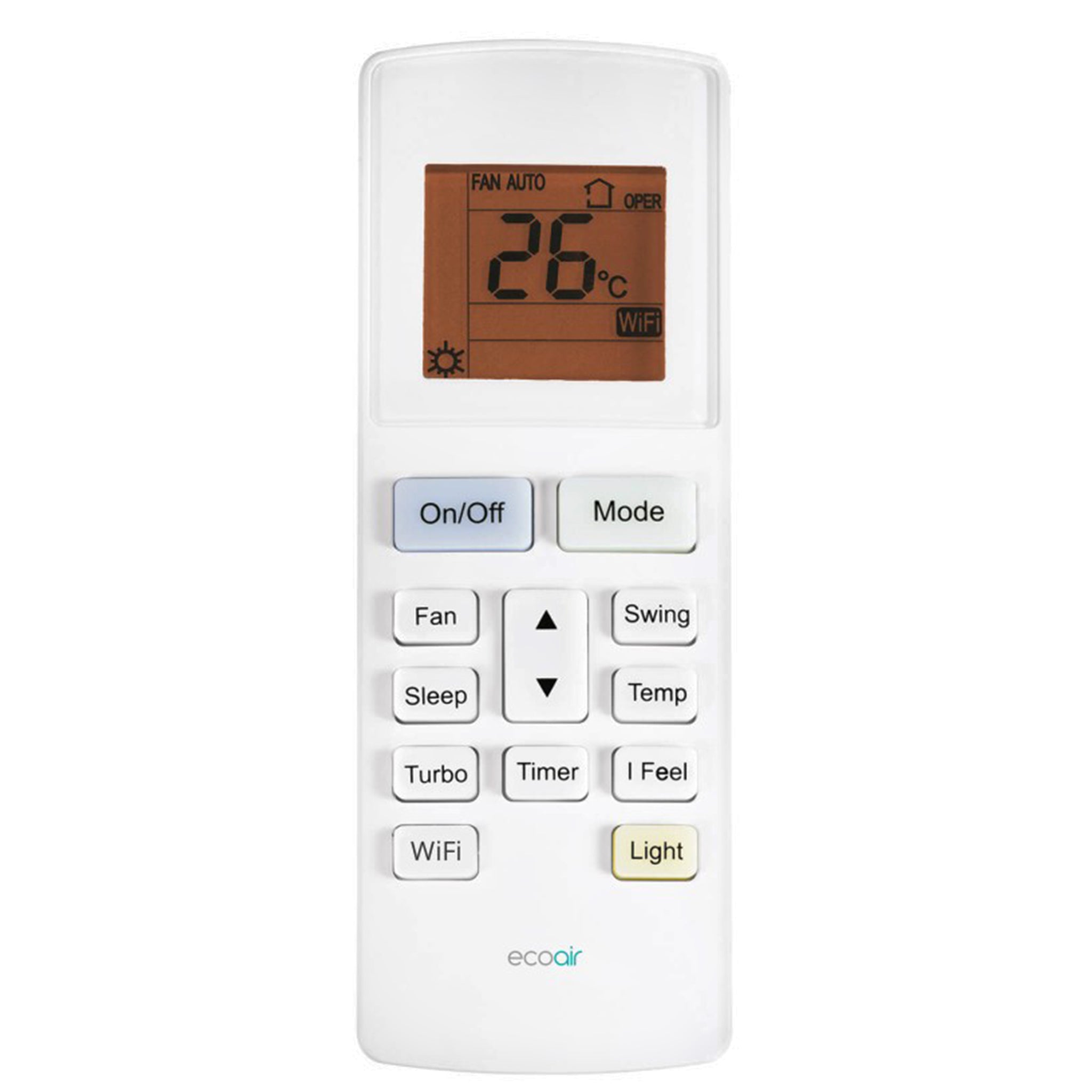

- 1 x Remote Control (Batteries is not included for the Remote Control)
- 1 x Drain Hose
- 1 x User Manual
- 1 x Hole Cover Plate
- 1 x Drain Joint
- 4 x Wall Plugs and Screws
- 1 x Set of Copper Pipes
